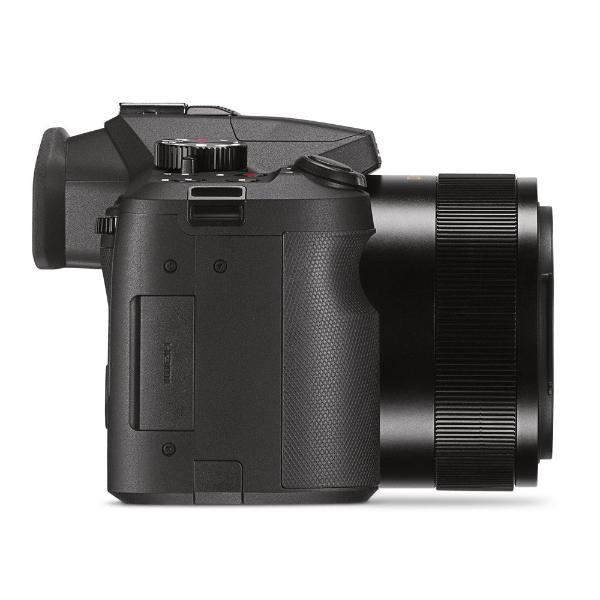

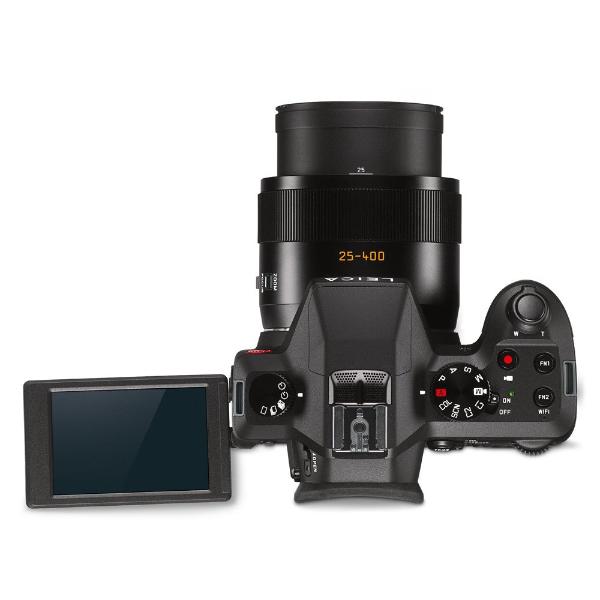

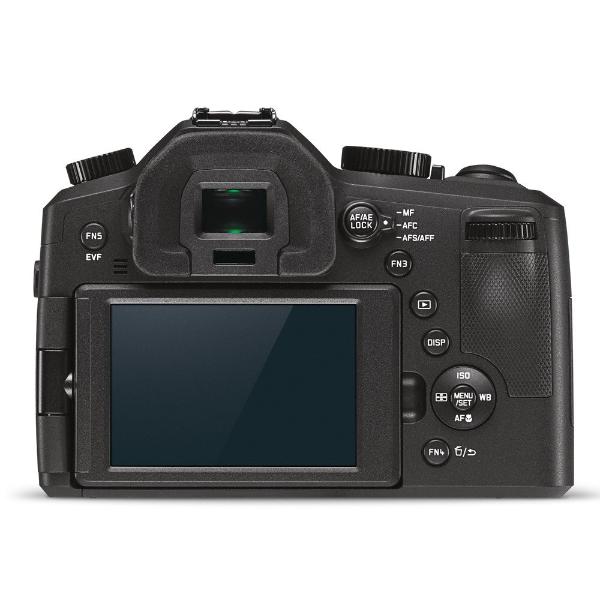

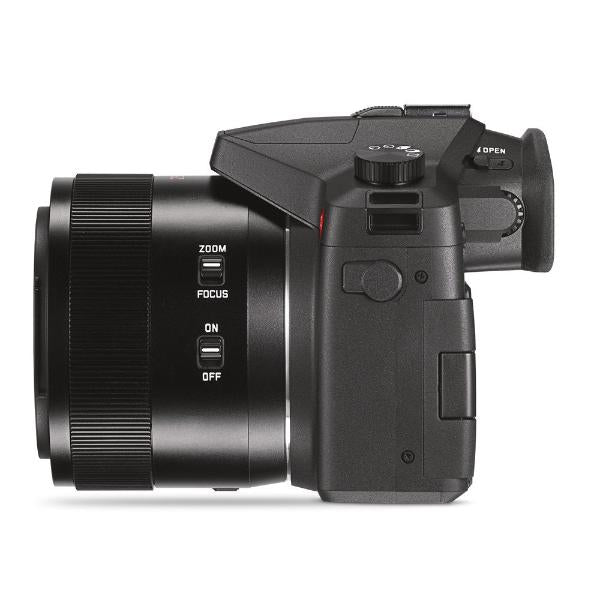

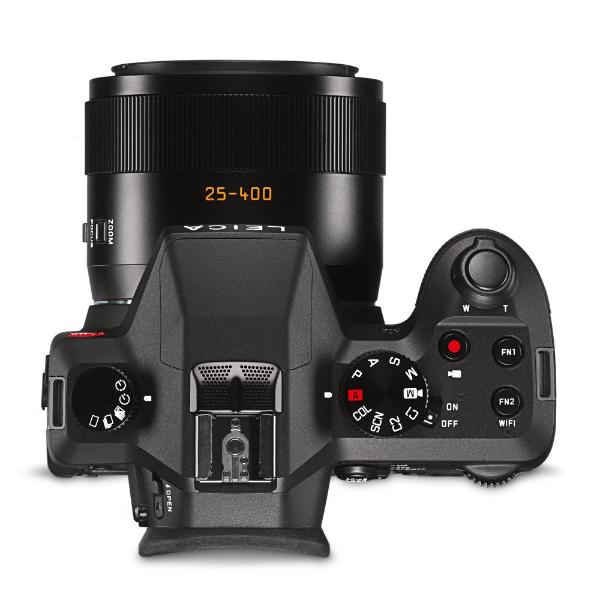

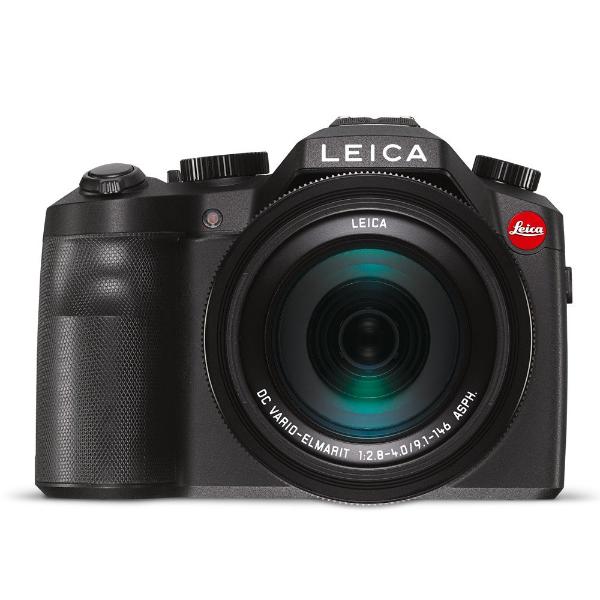

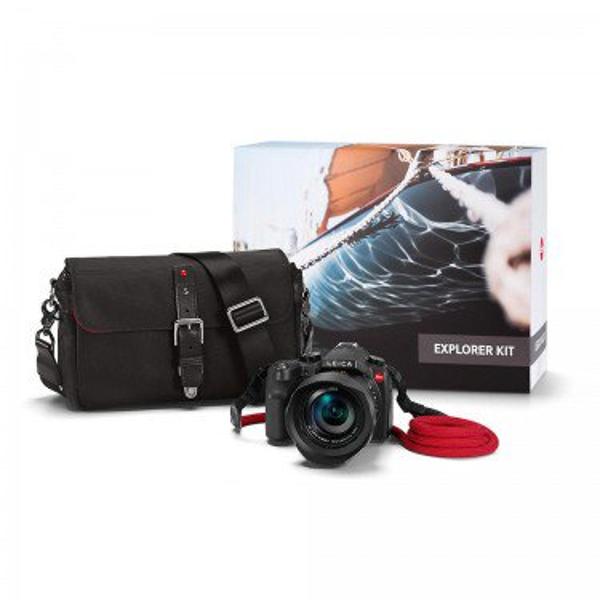

Leica V-LUX Typ 114

1” MOS sensor, total pixel number, 20,900,000, primary color filter

20,100,000

Leica DC Vario-Elmarit f/2-8-4.0 / 9.1 - 146 mm ASPH, 35 mm camera equivalent: 25-400 mm OIS (Optical Image Stabilization)

AF

AF Macro / MF / Snapshot

30 cm / 1’ (at 9.1 mm) / 1 m / 3’3” (at 146 mm) to infinity

3 cm / 1 3/16  “ (at 9.1mm) / 1 m / 3’3” (at 146 mm) to infinity

16x / 4x / 32 x

Electronically and mechanically controlled

B (Bulb, max. approx. 120s)

60 - 1/4000s (with mechanical shutter), 1-1/16000s (with the electronic shutter)

1/25s* [1/30s}**-1/16000s, 1/2-1/16000s (when [M} is selected in Creative Video Mode)

*/**: with camera modes 18 193 / 18 196 * [18 194 / 18 195} **

Electronic shutter: 50fps (SH), Electronic / Mechanical shutter: 2fps (L) / 7 fps (M) / 12 fps (H)

With RAW files: 10*

Without  RAW files: Depends on the capacity of the cad

*Based on CIPA standards and a card with a fast read / write speed

Program (P), Aperture-priority  (A), Shutter-priority  (S), Manual exposure (M), 2 Snapshot modes, 24

Scene modes

Recording file formats

Still pictures

Motion pictures (with audio)

RAW / JPEG (based on “Design rule for Camera File System” and on the “Exif 2.3” standard, DPOF

compatible) [MP4]

3840 x 2160/25p* [30p]** (100 Mbit/s), 1920 x 1080/50p* [60p]** (28 Mbit/s), 1920 x

1080/25p* [30p]** (20 Mbit/s), 1280 x720/25p* [30p]** (10Mbit/s), 640 x 480/25p* [30p]** (4

Mbit/s), [High speed video]: 1920x1080/25* [30}fps** (28 Mbit/s), Sensor output is 100 [120] fps

*/**: with camera models 18193 / 18196* [18194/18195]

AAC (2-CH)

Multi-zone, center-weighted, spot

3.0” monitor (rotatable), resolution: approx. 920,000 dots, aspect ratio: 3:2

0.39” OLED electronic viewfinder, resolution: approx. 2,360,000 dots, aspect ratio: 4:3, with diopter adjustment diopters, Magnification: approx. 1.88 x/0.7x (35 mm camera equivalent), eye sensor

Flash

Flash modes

(with ISO AUTO)

Built-in, pop-up flash unit

AUTO, AUTO/Red-Eye Reduction, ON, ON/Red-Eye Reduction, Slow Sync., Slow Sync./Red-Eye

Reduction, OFF

Approx. 0.3 - 13.5m/1’-44’/1.0-9.5m/3’3”-31’ (at shortest/longest focal length)

Stereo

Monaural

SD/SDHC*/SDXC* memory cards, (*UHS-I/UHS Speed Class 3)

IEEE 802.1 lb/g/n (standard wireless LAN protocol), Wi-Fi compliant WPATM/WPA2TM

ISO/IEC 18092 NFC-F (Passive Mode)

0-40 º C (32-104ºF) / 10-80% RH

2.4W/2.8W (When recording with monitor/viewfinder), 1.7W (when playing back)

(MIC): 3.5 mm jack,  (REMOTE): 2.5mm jack, (HDMI): Micro HDMI Type D (AV OUT/ DIGITAL): Dedicated  jack (8 pin), output: Digital: USB 2.0* / Analog Video/Audio:  NTSC/ PAL** (NTSC)*** Composite/Audio line output (monaural)* Data from a computer cannot be copied to the camera model 18193 **switchable in menu with camera models

18193/18196. *** with camera models (18194/18195)

Internal Memory (approx. 87 MB), SD/SDHC/SDXC  Memory cards

90 day trial subscription to Adobe® Creative Cloud Photoshop & Lightroom®

Dimensions (W x H x

D) / Weight

137 X 98.5 X 130.7 mm (5.39 x 3.88 x 5.15 inch) / 778 g without battery, 830 g with battery
