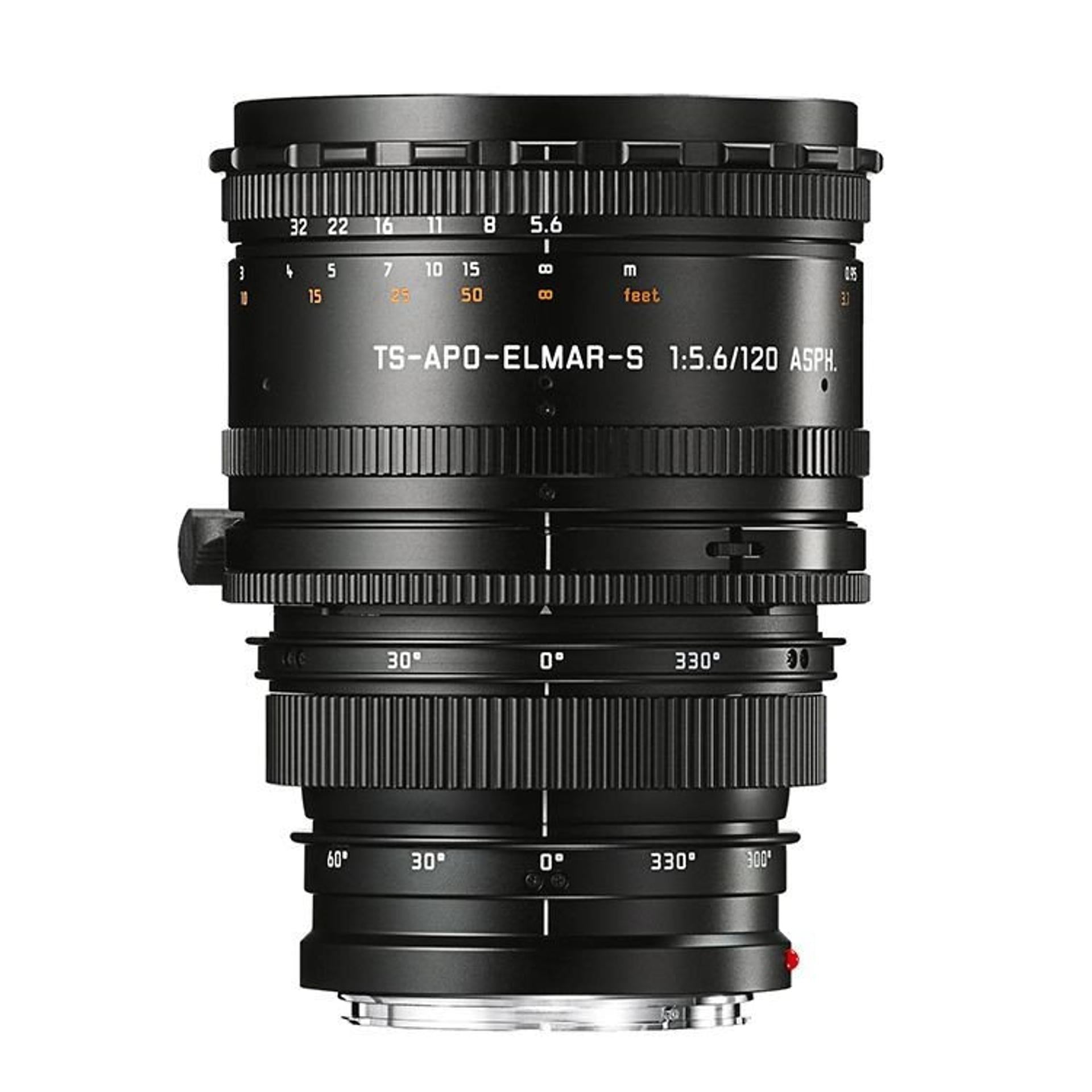

Leica TS-APO-Elmar-S 120mm f/5.6 ASPH
Write some content that will appear in a modal
Write some content that will appear in a modal
| Lens | Tilt/shift telephoto lens with superior imaging quality for Leica S-Cameras |
| Compatible cameras | All Leica S-Models |
| Angle of view lens in neutral setting | ~23,6°, 20°, 13,6° (diagonal, horizontal, vertical), equivalent to ~96 mm focal length in 35 mm format |
| Optical Design | |
| Number of lenses / groups | 6 / 4, 1 Aspherical surface |
| Position of entrance pupil | 65.6 mm |
| Shift / tilt Displacement | Max. 12 mm / .5 inches, in all directions |
| Tilt angle | Max. 8°, in all directions |
| Focusing Working range | 0.92 m ( 3 ft) to infinity |
| Scales | Combined meter / feet graduation |
| Smallest object field | ~159 x 239 mm |
| Largest reproduction ratio | 1 : 5.3 |
| Aperture Setting / function | Manual presetting, setting and open/close with separate rings, one-third values selectable |
| Smallest aperture value | 32 |
| Bayonet | Leica S quick-change bayonet |
| Filter mount | Inner threaded mount for E95 filters, non-rotating filter mount |
| Finish | Black anodized |
| Overall length to bayonet flange | ~144 mm / 5.7 inches |
| Maximum diameter | ~108/57.7 mm / 4.25/2.27 inches with/without tripod plate |
| Weight | ~1110 g / 2.45 lb |
Title
Title
Share some content to your customers about your products.
Title
Share some content to your customers about your products.
Choose options

Leica TS-APO-Elmar-S 120mm f/5.6 ASPH
Sale price195.800.000₫
