| Angle of view (diagonal, horizontal, vertical) | 27° / 23° / 15° (M8: 20° / 17° /11°) |
| Optical design |
|
| Number of lenses/groups | 4 / 4 |
| Focal length | 90.0 mm |
| Position of entrance pupil (from bayonet flange) | 22 mm |
| Focusing range | 0,8 m to ∞ |
| Distance setting | |
| Scales | Combined meter/feet graduation |
| Smallest object field | 169 x 244 mm (Adapter 72 x 108 mm) M8:122 x 183 mm (Adapter: 36 x 54 mm) |
| Largest reproduction ratio | approx. 1:6,7 |
| Aperture | |
| Setting/Function | prefix with click-stops, half steps, click-stop |
| Lowest value | 22 |
| Bayonet | Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models |
| Filter mount | internal thread for screw-in type filters E39, non-rotating lens mount |

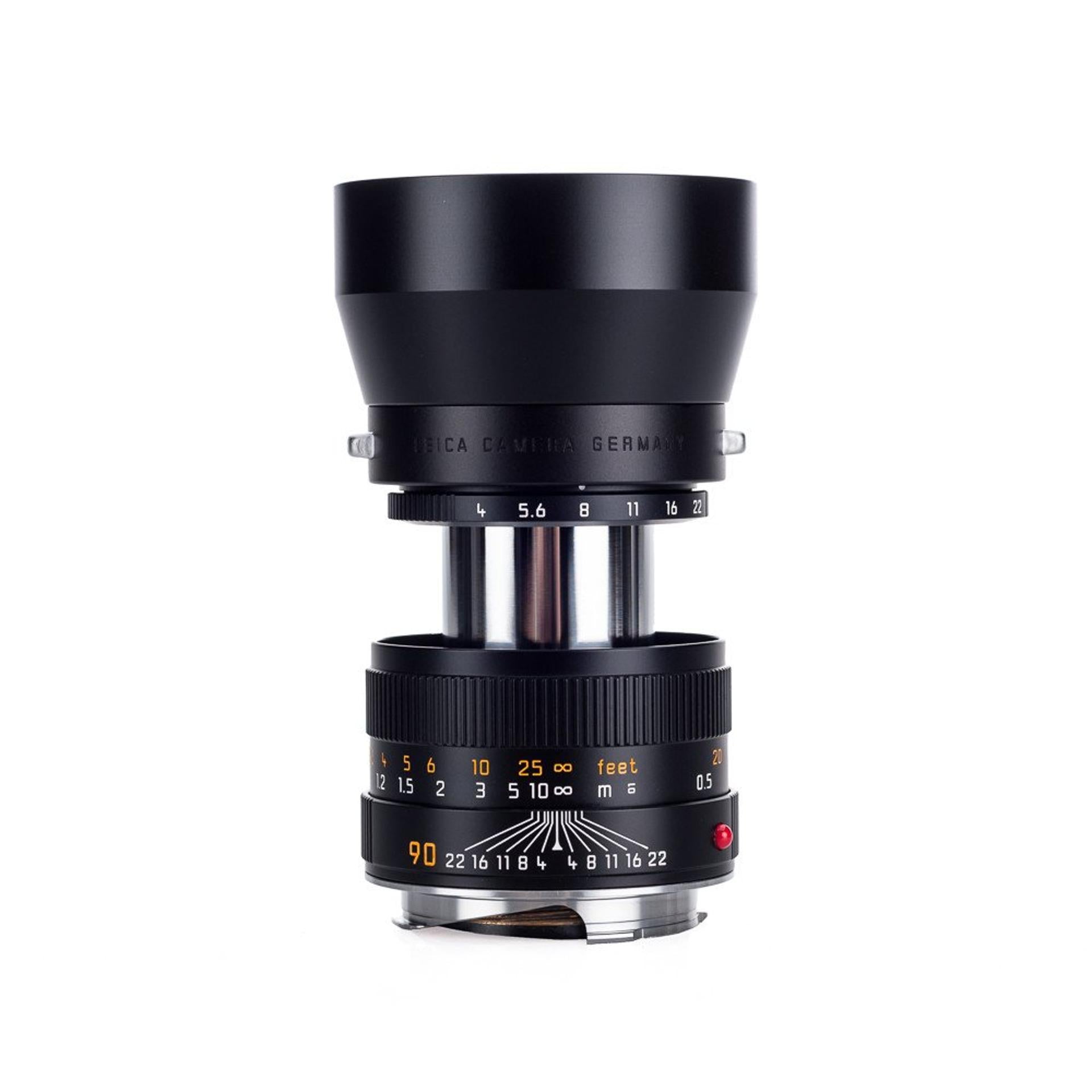

| Lens hood | separate metal lens hood, can be attached in reverse for storage |
| Dimension and weight: | |
| Length | 59 mm (lens extended, in working position), 41 mm (lens collapsed, in storage position) |
| Largest diameter | 52 mm |
| Weight | Weight: approx. 230 g (black anodized aluminium version) |
Title
Title
Share some content to your customers about your products.
Title
Share some content to your customers about your products.
Choose options

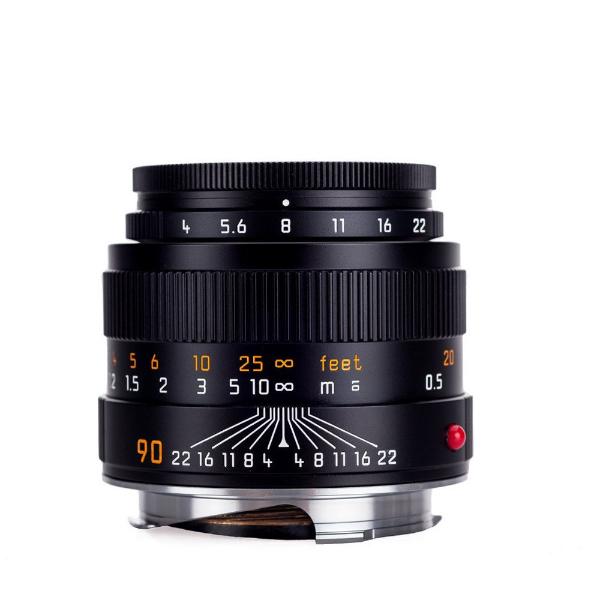

Leica Macro-Elmar-M 90mm f/4
Sale price122.980.000₫
