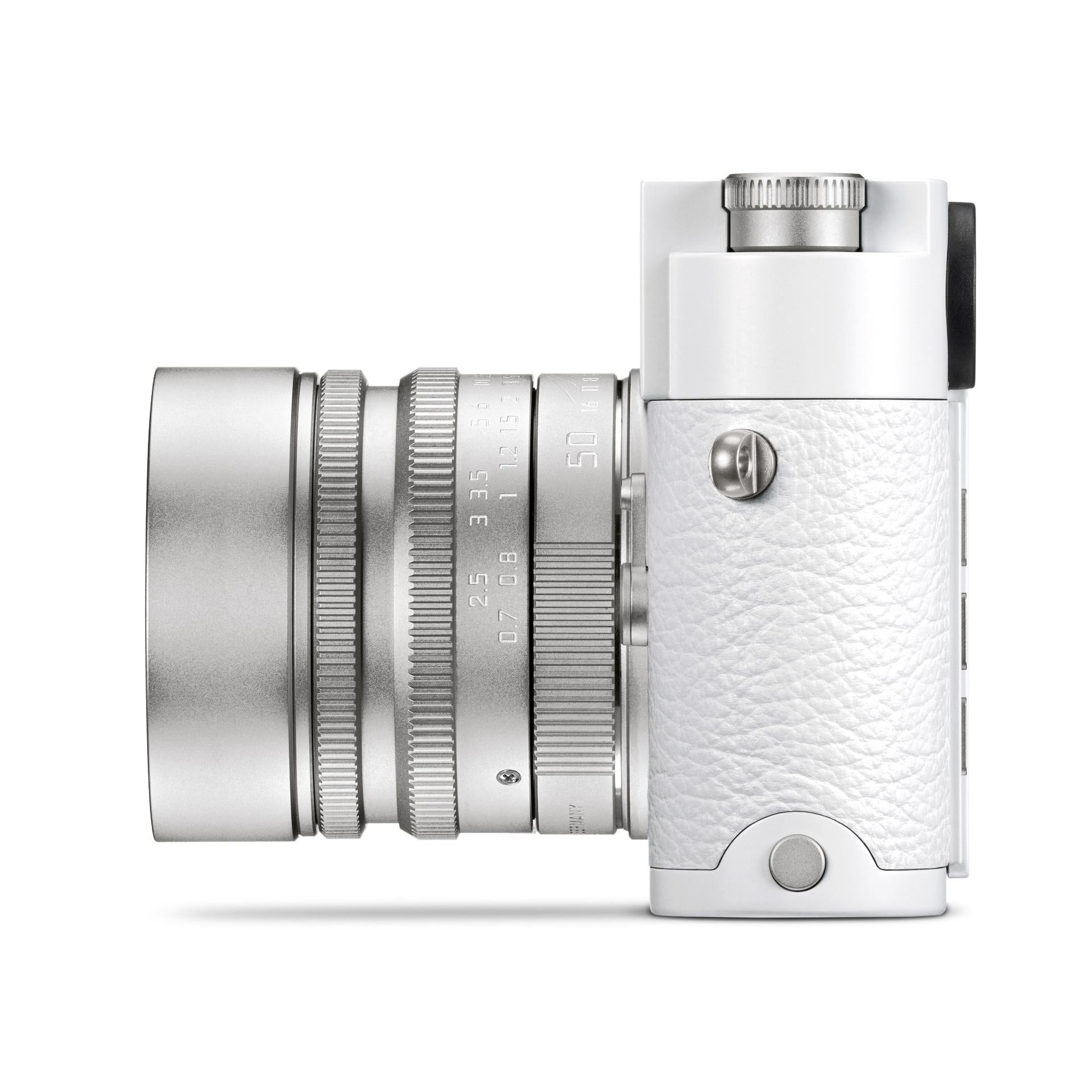

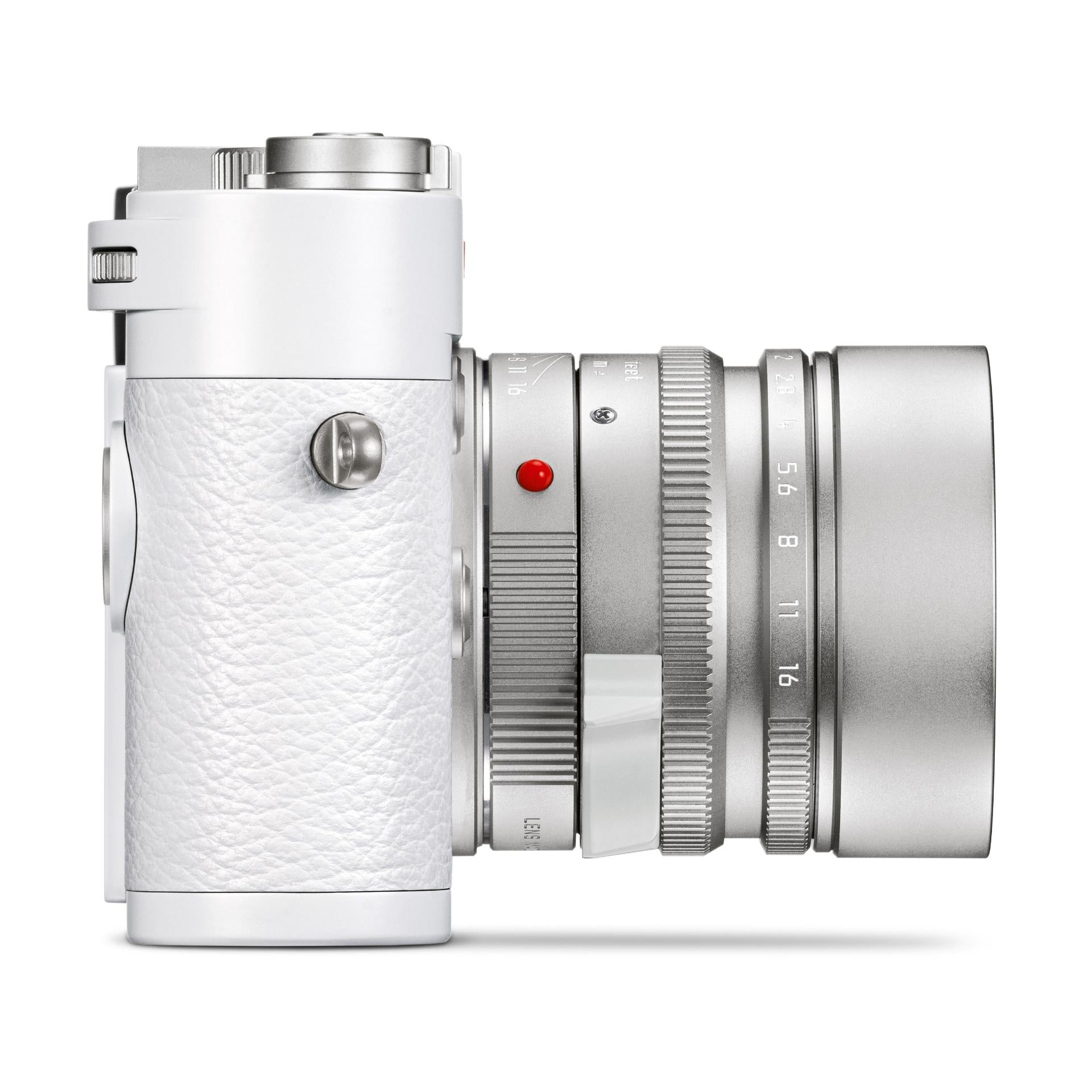

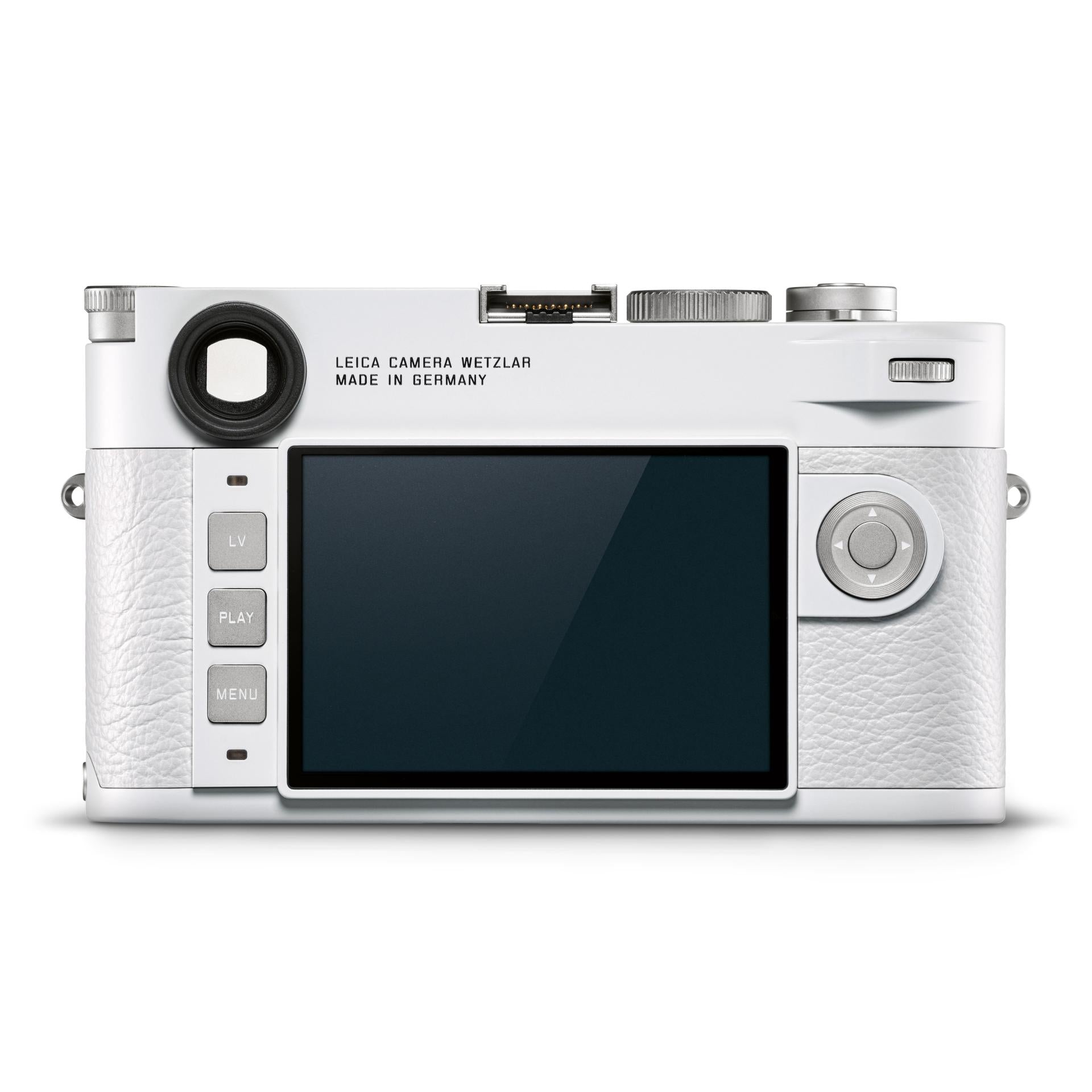

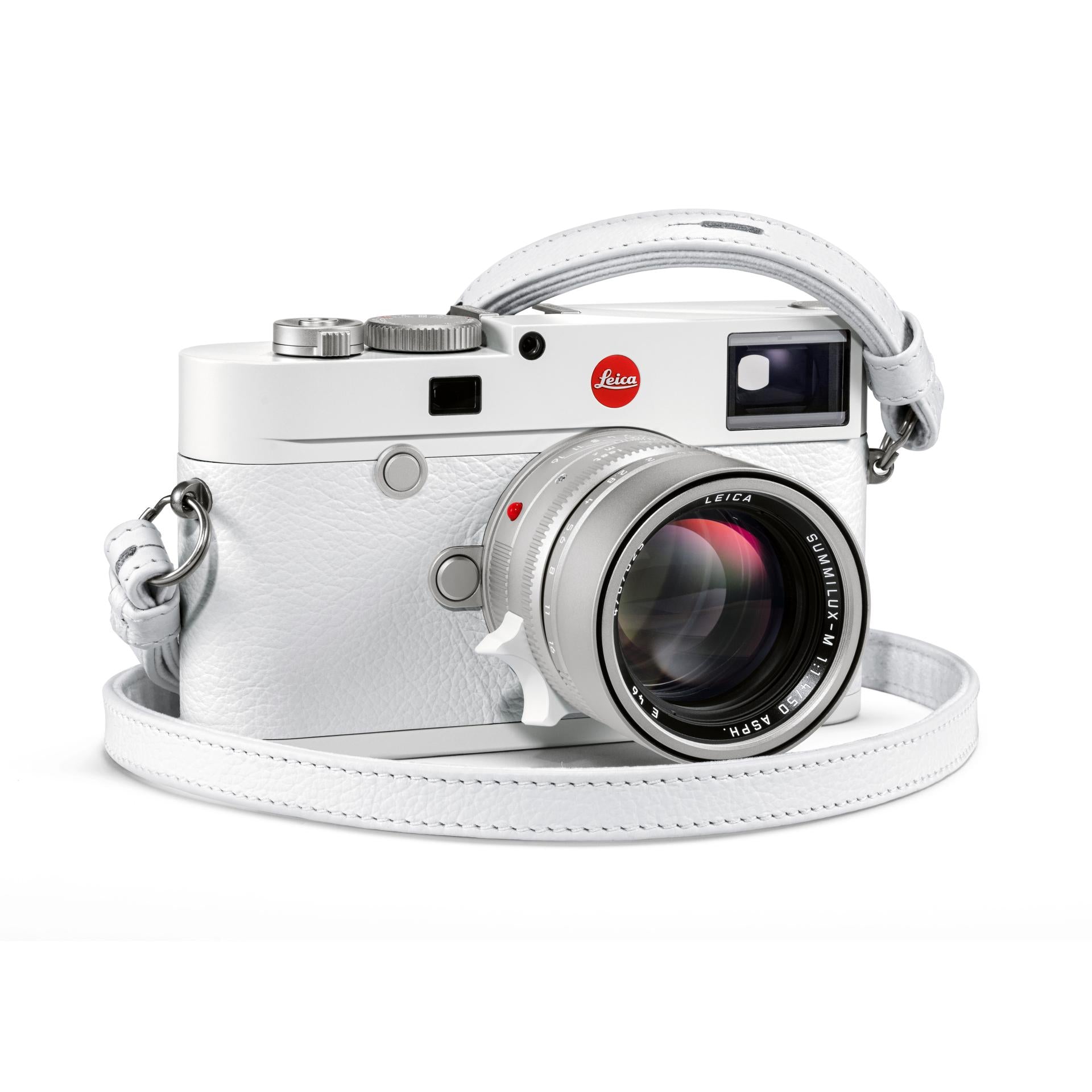

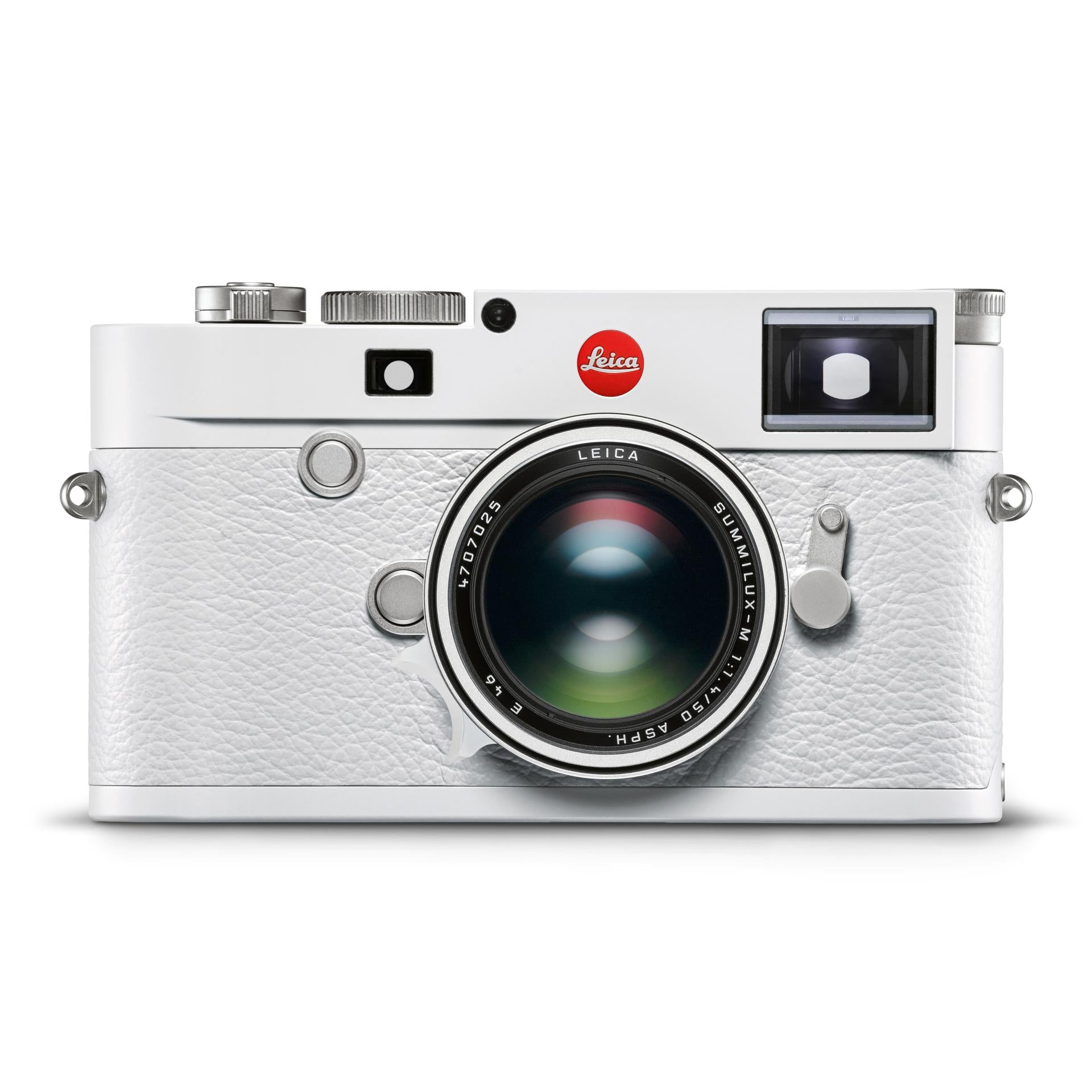

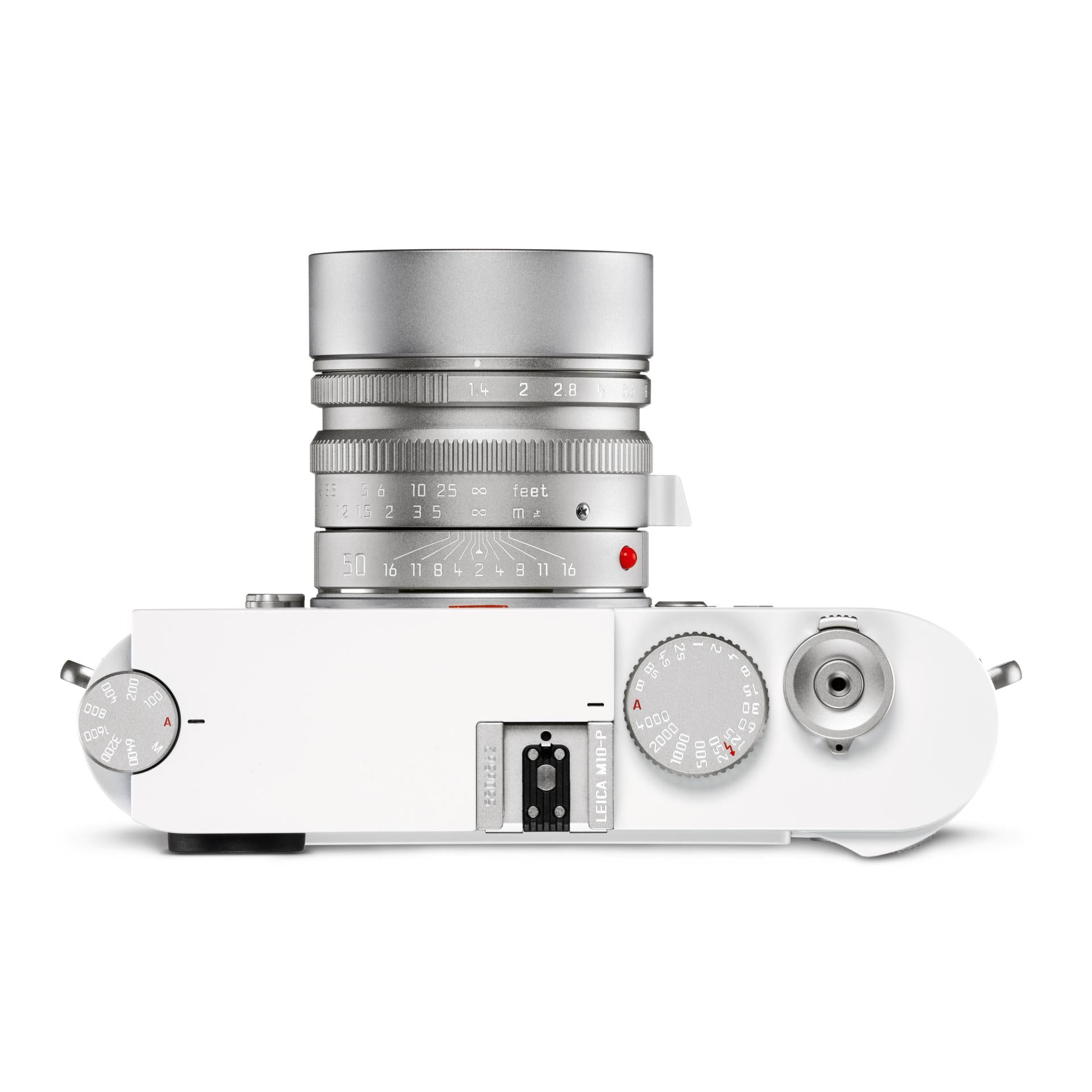

Leica M10-P "White"

Leica M10-P, compact digital rangefinder system camera

Leica M bayonet with additional sensor for 6-bit coding

Leica M lenses, R lenses can be used with optional adapter

CMOS chip, active surface 24x36mm

DNG: 5976x3992 pixels (24MP), JPEG: 5952x3968 pixels (24MP)

DNG (raw data, lossless compression), JPEG

DNG: 20-30 MB, JPEG depending on resolution and picture content

2GB / 16 pictures in series

Automatic, manual, 8 presets, color temperature input

SD cards up to 2GB, SDHC cards up to 32GB, SDXC cards up to 2TB

German, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

Exposure metering through the lens (TTL), with working aperture

For metering the light reflected by light blades of the 1st shutter curtain onto a measuring cell: Strong center-weighted; for metering on the sensor: Spot, center-weighted, multi-field metering

At room temperature and normal humidity for ISO 100, at aperture 1.0 EV-1 to EV20 at aperture 32. Flashing of the left triangular LED in the viewfinder indicates values below the metering range

ISO 100 to ISO 50000, adjustable in 1/3 ISO increments from ISO 200, choice of automatic control or manual setting

Choice of automatic shutter speed control with manual aperture pre-selection - aperture priority A, or manual shutter speed and aperture setting

Via accessory shoe with central and control contacts

Optionally triggered at the 1st or 2nd Shutter curtain

1/180s; slower shutter speeds can be used, if working below sync speed: Automatic changeover to TTL linear flash mode with HSS compatible Leica system flash units

Using center-weighted TTL pre-flash metering with Leica flash units (SF40, SF64, SF26, SF60), or flash units compatible with the system with SCA3502 M5 adapter

2 silicon photo diodes with collection lens on the camera base

±3EV in1⁄3 EV increments

Using flash symbol LED

Large, bright line frame viewfinder with automatic parallax compensation

Calibrated to -0.5 diopter; corrective lenses from -3 to +3 diopter available

By activating two bright lines each: For 35 and 135mm, for 28 and 90mm, or for 50 and 75mm; automatic switching when lens is attached

The horizontal and vertical difference between the viewfinder and the lens is automatically compensated according to the relevant distance setting, i.e. the viewfinder bright-line automatically aligns with the subject detail recorded by the lens.

At a range setting of 2m, the bright-line frame size corresponds exactly to the sensor size of approx. 23.9 x 35.8mm; at infinity setting, depending on the focal length, approx. 7.3% (28mm) to 18% (135mm) more is recorded by the sensor than indicated by the corresponding bright line frame and slightly less for shorter distance settings than 2m

0.73x

Split or superimposed image range finder shown as a bright field in the center of the viewfinder image

50.6mm (mechanical measurement basis 69.31mm x viewfinder magnification 0.73x)

Four-digit digital display with dots above and below

3” color touchscreen TFT LCD with 16 million colors and 1,036,800 pixels, approx. 100% image field, glass cover of extremely hard, scratch resistant Gorilla glass, color space: sRGB, for Live-View and review mode, displays, level gauge display

Metal blade focal plane shutter with vertical movement, near-silent operation

For aperture priority: (A) continuous from 125s to 1/4000s. For manual adjustment: 8s to 1⁄4000s in half steps, from 8s to 125s in whole steps, B: For long exposures up to maximum 125s (in conjunction with self-timer T function, i.e. 1st release = shutter opens, 2nd release = shutter closes),(1⁄180s): Fastest shutter speed for flash synchronization, HSS linear flash mode possible with all shutter speeds faster than 1⁄180s (with HSS-compatible Leica system flash units)

approx. 5 pictures per second, 30-40 pictures in series

Two-stage, 1st step: Activation of the camera electronics including exposure metering and exposure lock (in aperture priority mode), 2nd step: Shutter release; standard thread for cable release integrated.

Delay 2s (aperture priority and manual exposure setting) or 12s, set in menu, indicated by flashing LED on front of camera and corresponding display in monitor.

Using main switch on top of camera; optional automatic shutdown of camera electronics after approx. 2/5/10 minutes; reactivated by tapping the shutter release

1 lithium ion rechargeable battery, nominal voltage 7.4V, capacity 1300mAh.; maximum charging current/voltage: DC 1000mA, 7.4V; Model No.: BP-SCL5; Manufacturer: PT. VARTA Microbattery, Made in Indonesia, Operating conditions (in camera): 0°C - + 40°C

Inputs: 100-240V AC, 50/60Hz, 300mA, automatic switching, or 12V DC, 1.3A; Output: DC 7.4V, 1000mA/max. 8.25V, 1100mA; Model No.: BC-SCL5; Manufacturer: Guangdong PISEN Electronics Co., Ltd., Made in China, Operating conditions: 0°C - + 35°C

Only with Leica Visoflex viewfinder attached, available as an accessory

Complies with IEEE 802.11b/g/n standard (standard WiFi protocol), channel 1-11, encryption method: WiFi-compatible WPA/WPA2 encryption, access method: Infrastructure mode

Allows the bright-line pairs to be manually activated at any time (e.g. to compare detail)

A ¼" DIN stainless steel in bottom

0-40°C

ISO accessory shoe with additional contacts for Leica Visoflex viewfinder (available as an accessory)

(width x depth x height): approx. 139 x 38.5 x 80mm

Approx. 680g (with battery)
