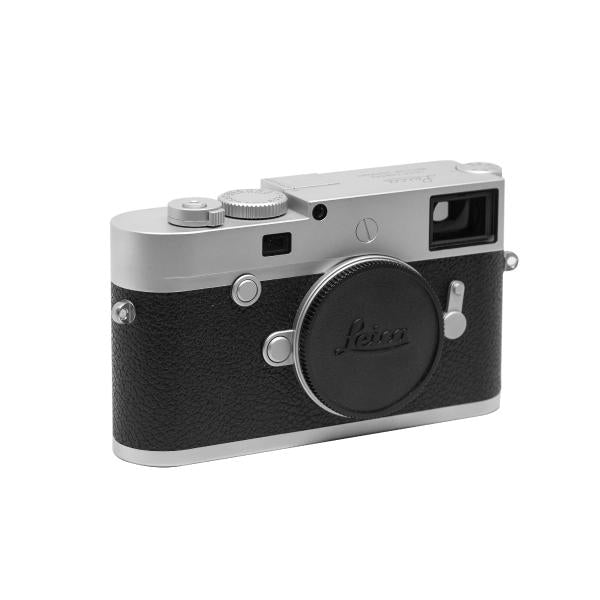

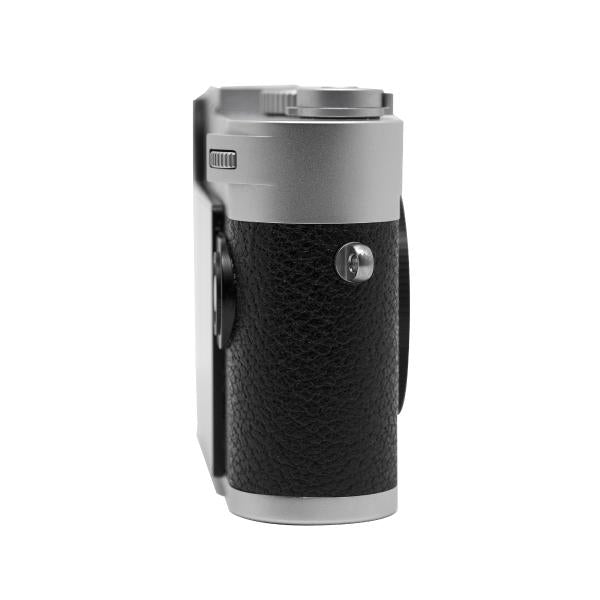

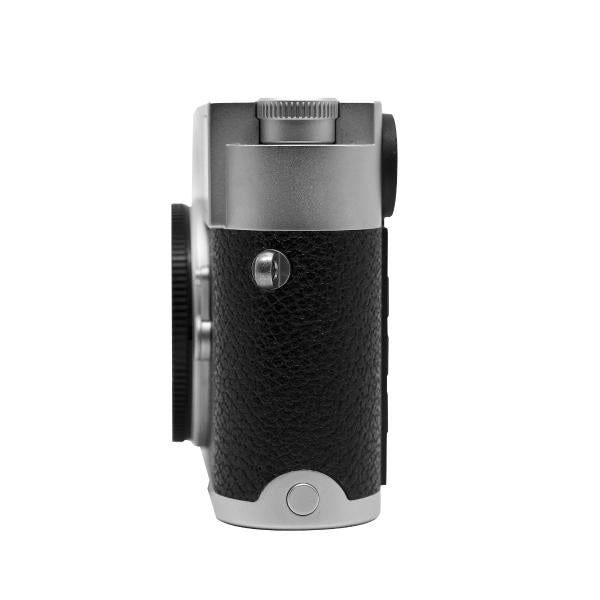

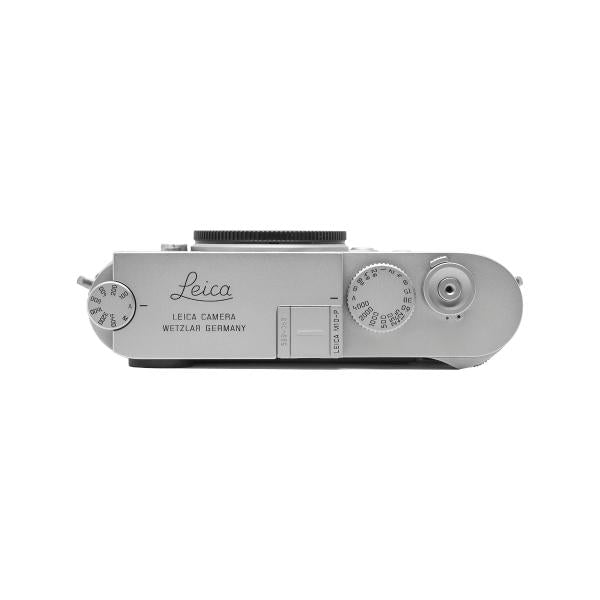

Leica M10-P
Write some content that will appear in a modal
Write some content that will appear in a modal
-
Lens mount:
Leica M bayonet with additional sensor for 6-bit coding
-
Lens System
Leica M lenses, R lenses can be used with optional adapter
-
Material
All-metal die cast magnesium body, synthetic leather covering. Brass top panel and base, black or silver chrome plated finish
-
Image Sensor
New 24MP CMOS Sensor, active surface 24x36mm
-
ISO Range
100 - 50,000
-
Exposure Modes
Choice of automatic shutter speed control with manual aperture preselection - aperture priority A, or manual shutter speed and aperture setting
-
Exposure Metering
Exposure metering through the lens (TTL), with working aperture
-
Metering Range
At room temperature and normal humidity for ISO 100, at aperture 1.0 EV-1 to EV20 at aperture 32. Flashing of the left triangular LED in the viewfinder indicates values below the metering range
-
Shutter Speed
For aperture priority: (A) continuous from 125s to 1/4000s. For manual adjustment: 8s to 1⁄4000s in half steps, from 8s to 125s in whole steps, B: For long exposures up to maximum 125s (in conjunction with self-timer T function, i.e. 1st release = shutter
-
Self-Timer
Delay 2s (aperture priority and manual exposure setting) or 12s, set in menu, indicated by flashing LED on front of camera and corresponding display in monitor.
-
Synchronization
Optionally triggered at the 1st or 2nd Shutter curtain
-
Flash Synch Time
1/180s; slower shutter speeds can be used, if working below sync speed: Automatic changeover to TTL linear flash mode with HSS compatible Leica system flash units
-
Flash Measurement Cell
2 silicon photo diodes with collection lens on the camera base
-
Flash Exposure Compensation
±3EV in1⁄3 EV increments
-
Displays in Flash Mode
Using flash symbol LED
-
Electronic Viewfinder
Visoflex
-
Resolutions
DNG: 5976x3992 pixels (24MP), JPEG: 5952x3968 pixels (24MP)
-
Data Formats
DNG (raw data, lossless compression), JPEG
-
File Sizes
DNG: 20-30 MB, JPEG depending on resolution and picture content
-
White Balance
Automatic, manual, 8 presets, color temperature input
-
Storage Media
SD cards up to 2GB, SDHC cards up to 32GB, SDXC cards up to 2TB
-
Buffer Memory
2GB / 16 pictures in series
-
Menu Languages
German, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
-
Image Field Limiter
By activating two bright lines each: For 35 and 135mm, for 28 and 90mm, or for 50 and 75mm; automatic switching when lens is attached
-
Image Field Selector
Allows the bright-line pairs to be manually activated at any time (e.g. to compare detail)
-
Parallax Compensation
The horizontal and vertical difference between the viewfinder and the lens is automatically compensated according to the relevant distance setting, i.e. the viewfinder bright-line automatically aligns with the subject detail recorded by the lens.
-
Magnification
0.73x
-
Large Basis Range Finder
Split or superimposed image range finder shown as a bright field in the center of the viewfinder image
-
Effective Measurement Basis
50.6mm (mechanical measurement basis 69.31mm x viewfinder magnification 0.73x)
-
Tripod Thread
A ¼" DIN stainless steel in bottom
-
Turning the camera on/off
Using main switch on top of camera; optional automatic shutdown of camera electronics after approx. 2/5/10 minutes; reactivated by tapping the shutter release
-
Battery Charger
Inputs: 100-240V AC, 50/60Hz, 300mA, automatic switching, or 12V DC, 1.3A; Output: DC 7.4V, 1000mA/max. 8.25V, 1100mA; Model No.: BC-SCL5; Manufacturer: Guangdong PISEN Electronics Co., Ltd., Made in China, Operating conditions: 0°C - + 35°C
-
Operating Conditions
0-40°C
-
Interface
ISO accessory shoe with additional contacts for Leica Visoflex viewfinder (available as an accessory)
-
GPS
Only with Leica Visoflex viewfinder attached, available as an accessory
-
Dimensions
(width x depth x height): approx. 139 x 38.5 x 80mm
-
Weight
approx. 660g (with battery)
-
Package Contents
Charger 100-240V with 2 mains cables and 1 car charging cable, lithium ion battery, carrying strap, body bayonet cover, cover for accessory shoe
-
Camera Type
Leica M10, compact digital rangefinder system camera
-
Sensitivity Range
ISO 100 to ISO 50000, adjustable in 1/3 ISO increments from ISO 200, choice of automatic control or manual setting
-
Metering Modes
For metering the light reflected by light blades of the 1st shutter curtain onto a measuring cell: Strong center-weighted; for metering on the sensor: Spot, center-weighted, multi-field metering
-
Shutter
Metal blade focal plane shutter with vertical movement
-
Release Button
Two-stage, 1st step: Activation of the camera electronics including exposure metering and exposure lock (in aperture priority mode), 2nd step: Shutter release; standard thread for cable release integrated.
-
Power Supply On/off
1 lithium ion rechargeable battery, nominal voltage 7.4V, capacity 1300mAh.; maximum charging current/voltage: DC 1000mA, 7.4V; Model No.: BP-SCL5; Manufacturer: PT. VARTA Microbattery, Made in Indonesia, Operating conditions (in camera): 0°C - + 40°C
-
Display in the Viewfinder
Four-digit digital display with dots above and below
-
Flash Exposure Metering
Using center-weighted TTL pre-flash metering with Leica flash units (SF40, SF64, SF26), or flash units compatible with the system with SCA3502 M5 adapter
-
Monitor
3"-TFT monitor (1.04 million pixels) with Corning Gorilla Glass
-
Processor
Leica Maestro II
-
Video
No
-
Live-View
Yes
-
GPS
Only with Leica Visoflex viewfinder attached, available as an accessory
-
WLAN
Yes
-
DCin
No
-
Studioflash Connection
No
-
Frame Selector
Yes
-
Viewfinder: Construction Principle
Large, bright line frame viewfinder with automatic parallax compensation
-
Viewfinder: Eyepiece
Calibrated to -0.5 diopter; corrective lenses from -3 to +3 diopter available
-
Matching Viewfinder & Actual Image
At a range setting of 2m, the bright-line frame size corresponds exactly to the sensor size of approx. 23.9 x 35.8mm; at infinity setting, depending on the focal length, approx. 7.3% (28mm) to 18% (135mm) more is recorded by the sensor than indicated by t
-
Display On Back
3” color TFT LCD with 16 million colors and 1,036,800 pixels, approx. 100% image field, glass cover of extremely hard, scratch resistant Gorilla glass, color space: sRGB, for Live-View and review mode, displays
