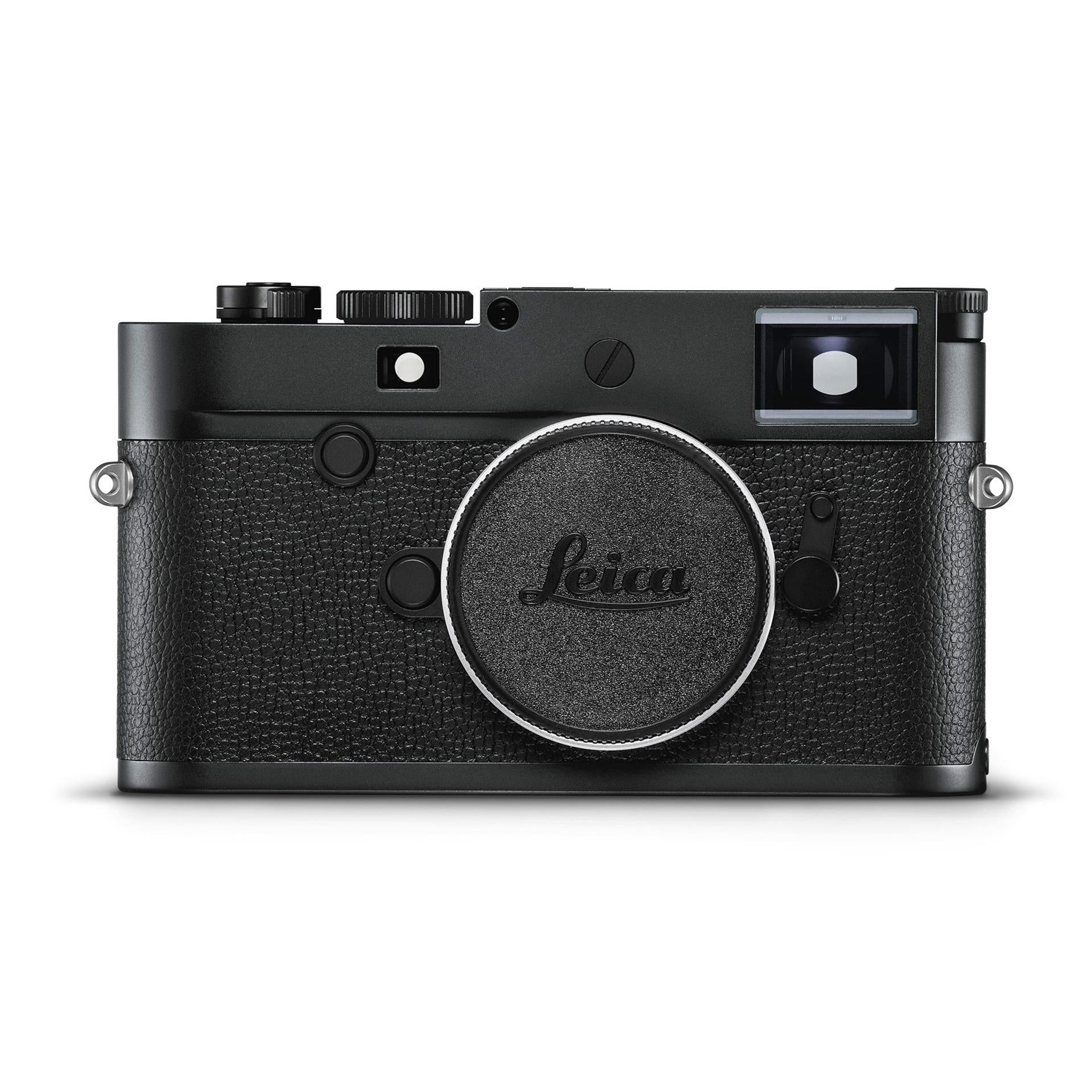

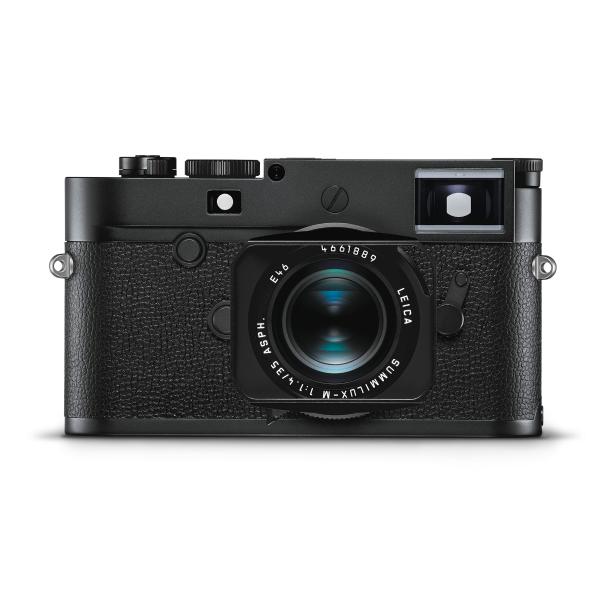

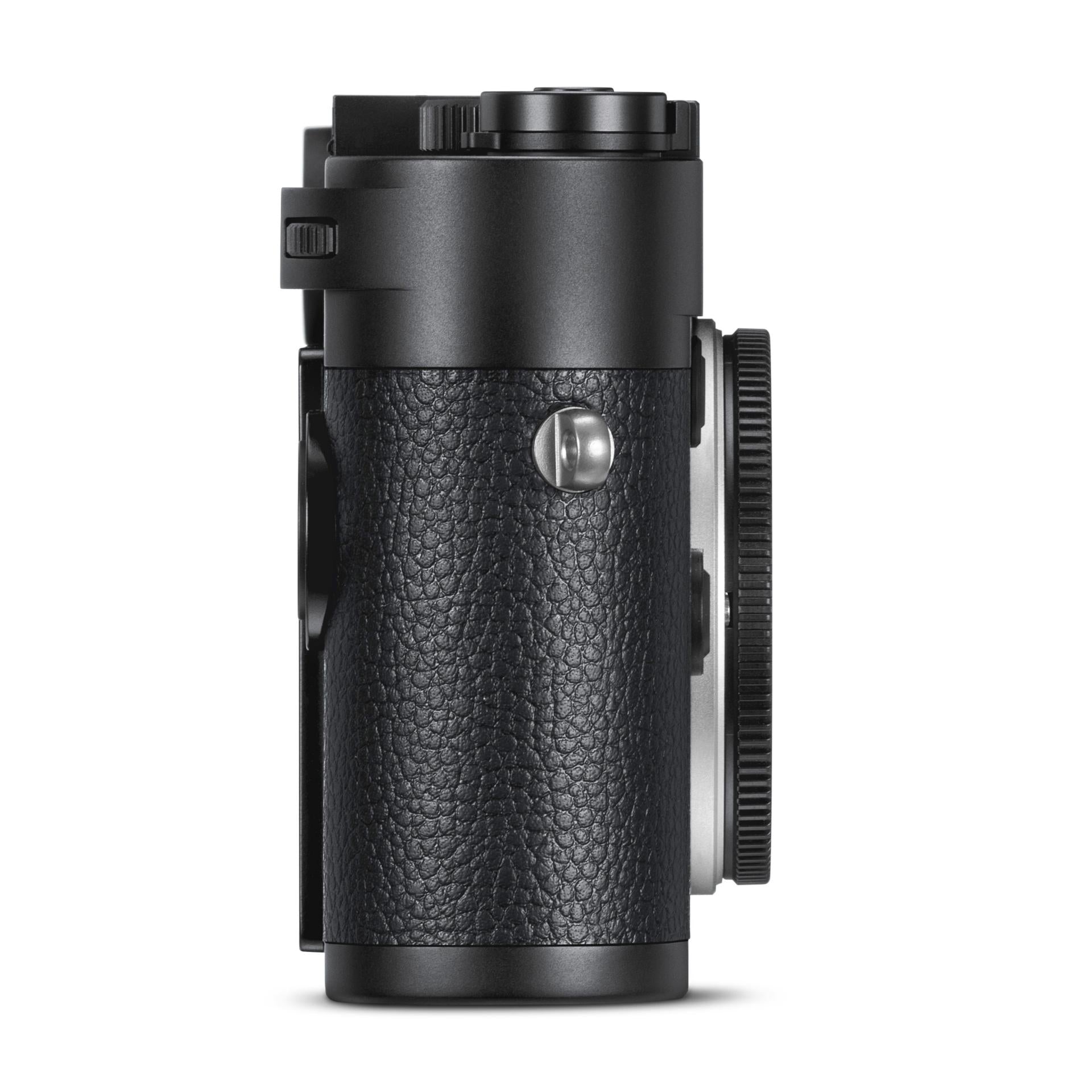

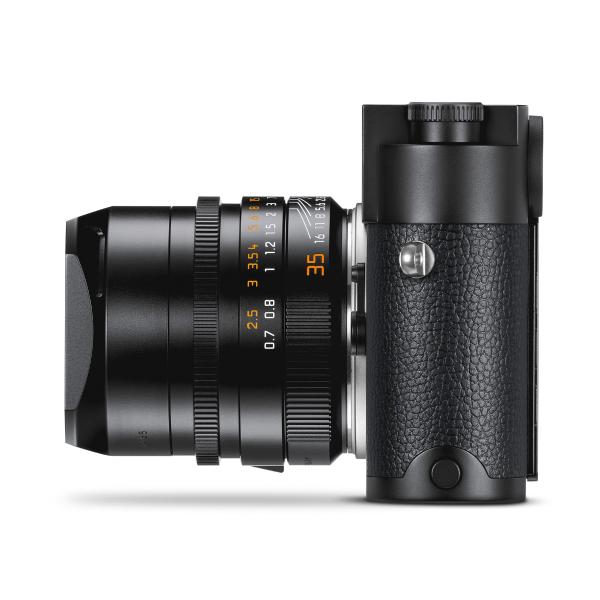

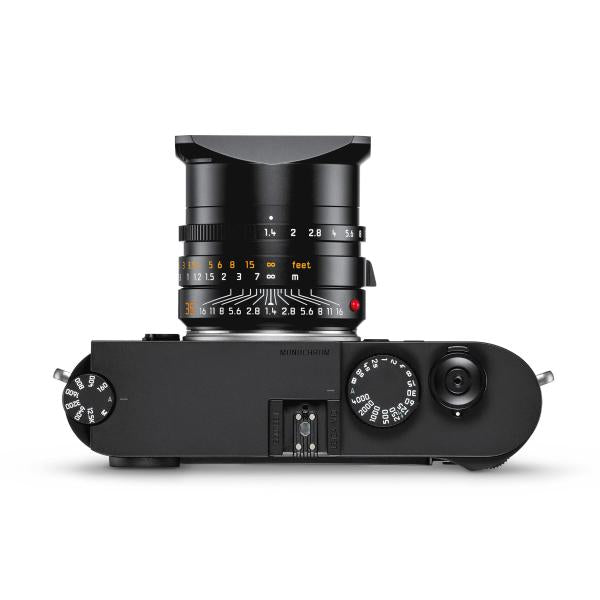

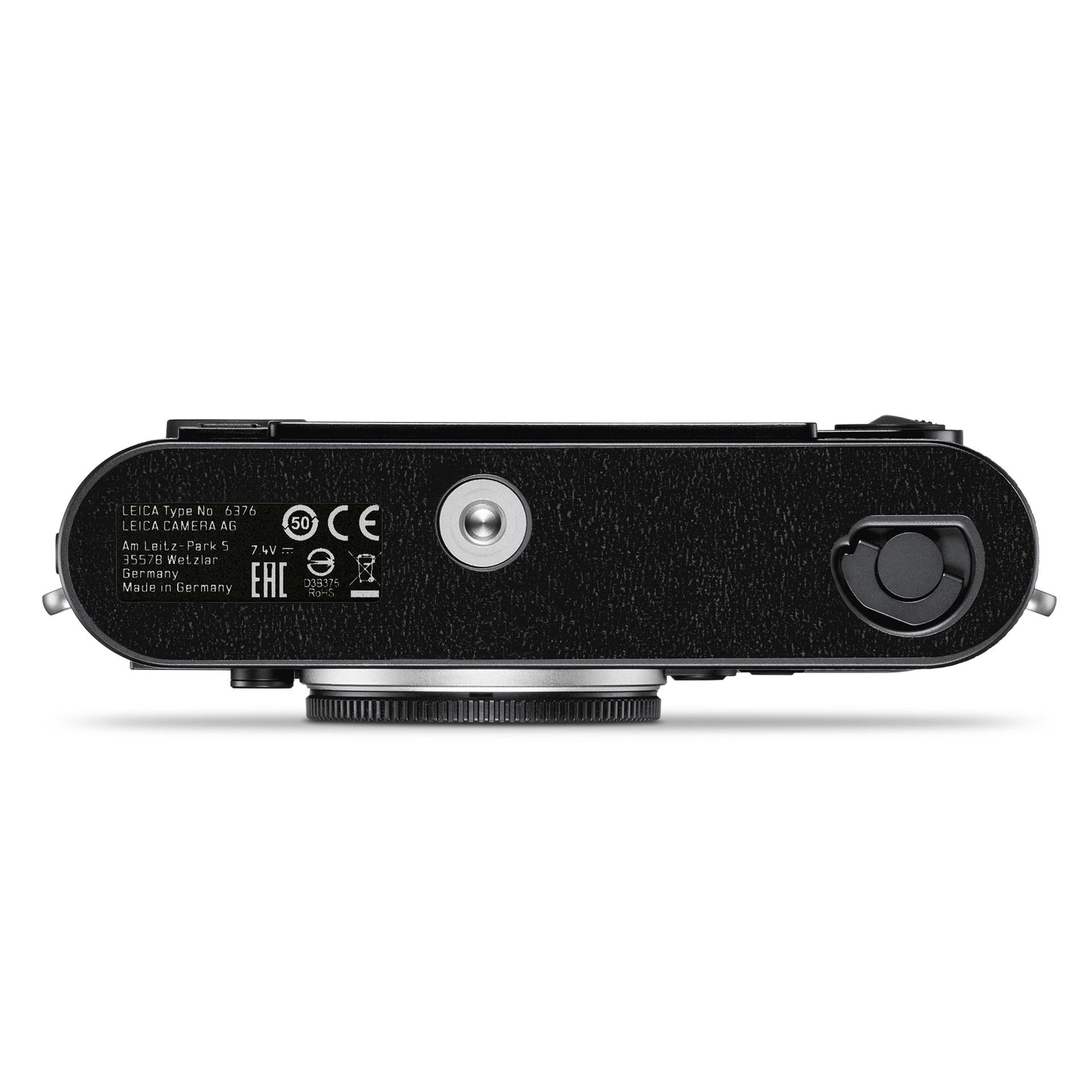

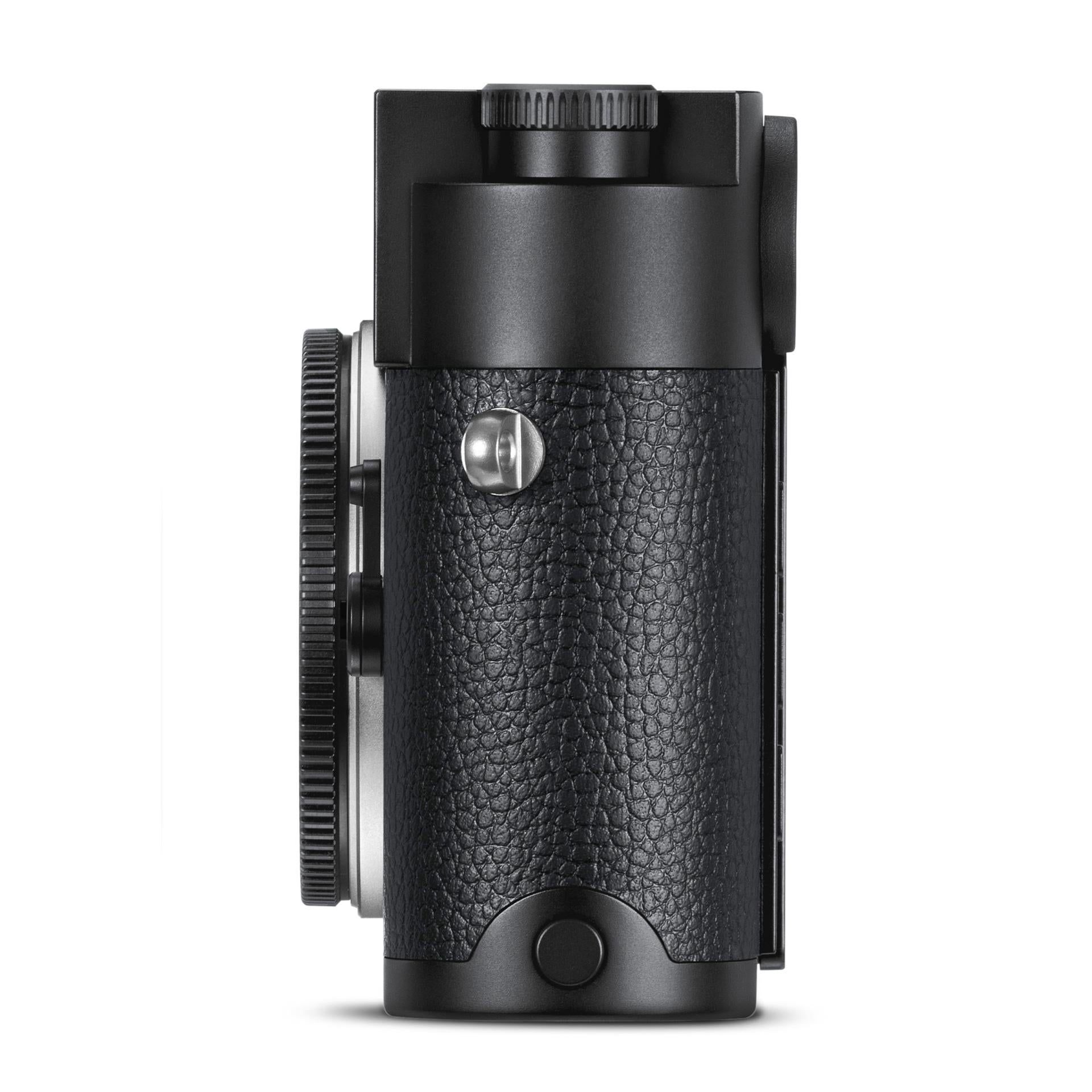

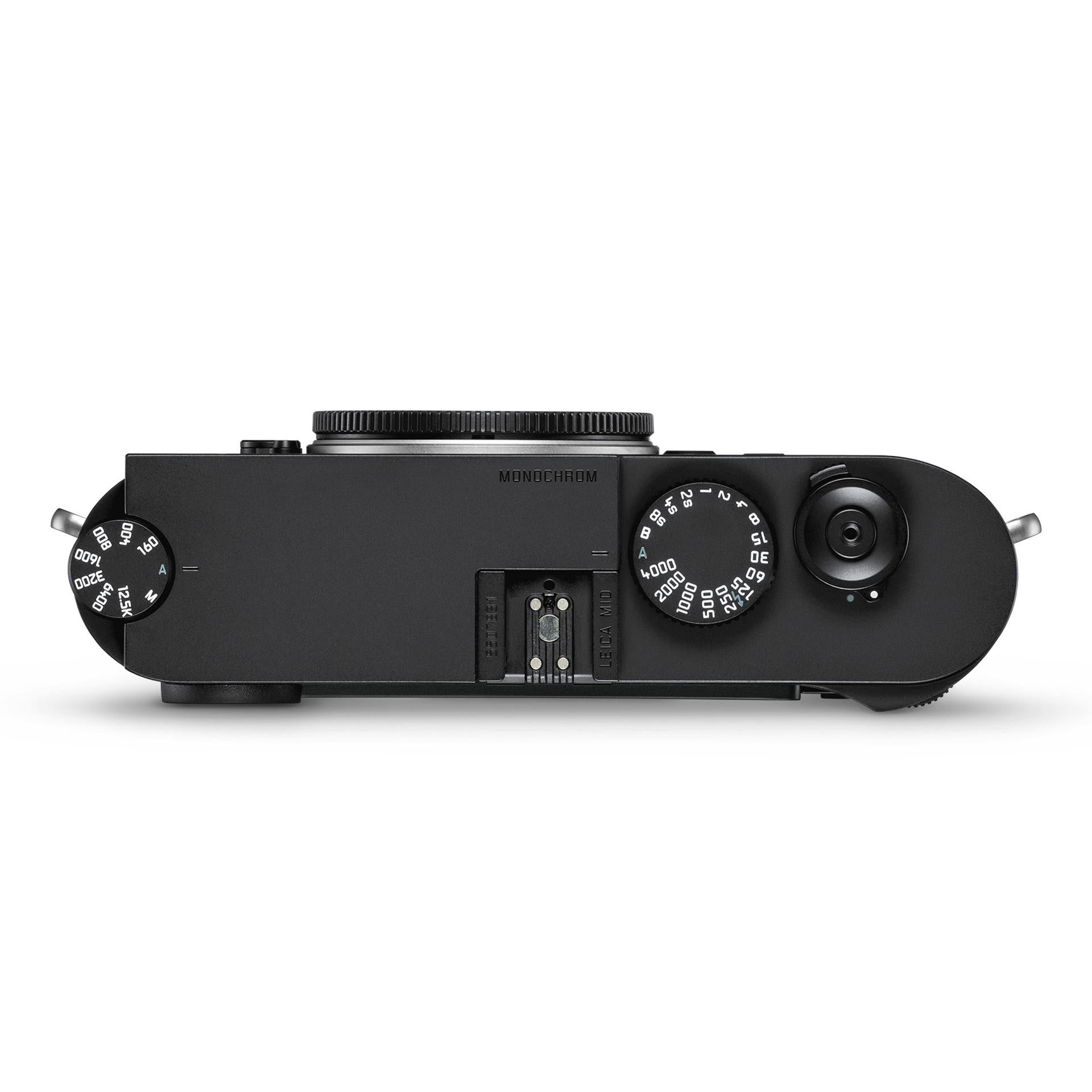

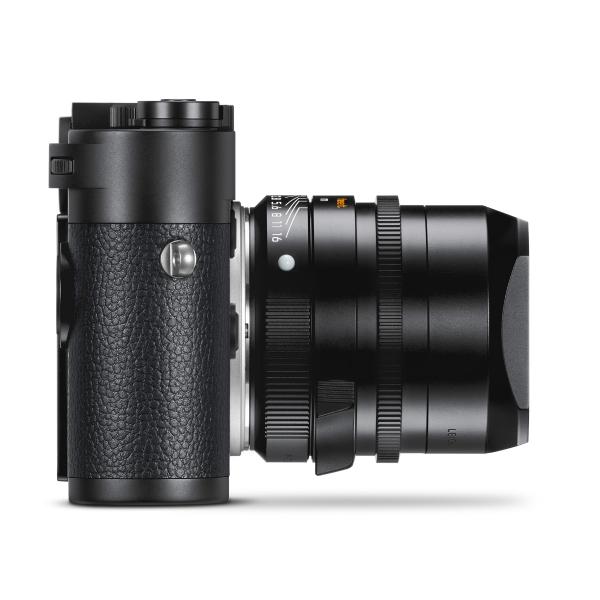

Leica M10 Monochrom
Write some content that will appear in a modal
Write some content that will appear in a modal
-
Lens mount:
Leica M bayonet with additional sensor for 6-bit coding
-
Lens System
Leica M lenses, Leica R lenses with an optional adapter (available accessory)
-
Material
All-metal die cast magnesium body, synthetic leather covering. Brass top panel and base, black chrome plated finish
-
Exposure Modes
Choice of automatic shutter speed control with manual aperture preselection - aperture priority A, or manual shutter speed and aperture setting
-
Exposure Metering
Exposure metering through the lens (TTL), with working aperture
-
Metering Range
At room temperature and normal humidity for ISO 200, at aperture 1.0 EV-2 to EV19 at aperture 32. Flashing of the left triangular LED in the viewfi nder indicates values below the metering range
-
Shutter Speed
For aperture priority: (A) continuous from 16min to 1⁄4000s., for manual adjustment: 8s to 1⁄4000s in half steps, from 8s to 16min in half steps, B: For long exposures up to maximum 16min (in conjunction with self-timer T function, i.e. 1st release = shut
-
Shutter Release
Two-stage, 1st step: Activation of the camera electronics including exposure metering and exposure lock (in aperture priority mode), 2nd step: Shutter release; standard thread for cable release integrated.
-
Self-Timer
Delay optionally 2s (aperture priority and manual exposure setting) or 12s, set in menu, indicated by flashing LED on front of camera and corresponding display in monitor.
-
Synchronization
Optionally triggered at the 1st or 2nd shutter curtain
-
Flash Synch Time
Slower shutter speeds can be used, if working below sync speed: Automatic changeover to TTL linear flash mode with HSS-compatible Leica system flash units
-
Flash Measurement Cell
2 silicon photo diodes with collection lens on the camera base
-
Flash Exposure Compensation
±3EV in1⁄3EV increments
-
Displays in Flash Mode
Using flash symbol LED
-
Resolutions
DNG™: 7864 x 5200 pixels (40,89 MP), JPEG: 7840 x 5184 pixels (40,64 MP), 5472 x 3648 pixels (20 MP), 2976 x 1984 pixels (6MP)
-
Data Formats
DNG™ (raw data, compressed loss-free), JPEG
-
File Sizes
DNG™: 40-60 MB, JPEG (40MP)10-20 MB: Depending on resolution and picture content
-
White Balance
Automatic, manual, 8 presets, colour temperature input
-
Storage Media
SD cards up to 2GB/SDHC cards up to 32GB/SDXC cards up to 2TB
-
Buffer Memory
2GB / 10 pictures in series
-
Menu Languages
German, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplifi ed Chinese, Russian, Korean
-
Image Field Limiter
By activating two bright lines each: For 35 and 135mm, or for 28 and 90mm, or for 50 and 75mm; automatic switching when lens is attached.
-
Image Field Selector
Allows the bright-line pairs to be manually activated at any time (e.g. to compare detail)
-
Parallax Compensation
The horizontal and vertical difference between the viewfinder and the lens is automatically compensated according to the relevant distance setting, i.e. the viewfinder bright-line automatically aligns with the subject detail recorded by the lens.
-
Magnification
(For all lenses) 0.73 x
-
Tripod Thread
A ¼ (¼") DIN stainless steel in bottom
-
Turning the camera on/off
Using main switch on top of camera; optional automatic shutdown of camera electronics after approx. 2/5/10 minutes; reactivated by tapping the shutter release
-
Battery Charger
Inputs: 100-240V AC, 50/60Hz, 300mA, automatic switching, or 12V DC, 1.3A; Output: DC 7.4V, 1000mA/max. 8.25V, 1100mA; Model No.: BC-SCL5; Manufacturer: Guangdong PISEN Electronics Co., Ltd., Made in China, Operating conditions: 0°C - + 35°C
-
Operating Conditions
0–40 °C
-
Interface
ISO accessory shoe with additional contacts for Leica Visoflex viewfinder (available as an accessory)
-
GPS
(only with Leica Visoflex viewfinder attached, available as an accessory) Optional (not available everywhere due to country-specific legislation, i.e. enforced automatic shutdown in those countries), data are written to EXIF header in picture files.
-
Dimensions
(width x depth x height) approx. 139 x 38.5 x 80mm
-
Weight
approx. 660g (with battery)
-
Camera Type
Compact digital view and rangefi nder system camera with a dedicated black-and-white image sensor.
-
Sensitivity Range
ISO 160 to ISO 100.000, adjustable in 1/3 ISO increments from ISO 160, choice of automatic control or manual setting
-
Shutter
Metal blade focal plane shutter with vertical movement
-
Power Supply On/off
1 Lithium-ion rechargeable battery, nominal voltage 7.4V, capacity 1100mAh.; maximum charging current/voltage: DC 1000mA, 7.4V; Model No.: BP-SCL5; Manufacturer: PT. VARTA Microbattery, Made in Indonesia, Operating conditions (in camera): 0°C - + 40°C
-
Display in the Viewfinder
Four-digit digital display with exposure alerts above and below
-
Flash Exposure Metering
Using centre-weighted TTL pre-flash metering with Leica flash units (SF40, SF64, SF26), or flash units compatible with the system with SCA3502 M5 adapter
-
GPS
(only with Leica Visoflex viewfinder attached, available as an accessory) Optional (not available everywhere due to country-specific legislation, i.e. enforced automatic shutdown in those countries), data are written to EXIF header in picture files.
-
Viewfinder: Construction Principle
Large, bright line frame viewfinder with automatic parallax compensation
-
Viewfinder: Eyepiece
Calibrated to -0.5 dpt.; corrective lenses from -3 to +3 diopter available
-
Matching Viewfinder & Actual Image
At a range setting of 2m, the bright-line frame size corresponds exactly to the sensor size of approx. 23.9 x 35.8mm; at infinity setting, depending on the focal length, approx. 7.3% (28mm) to 18% (135mm) more is recorded by the sensor than indicated by t
-
Display On Back
3" colour TFT LCD monitor with 16 million colours and 1,036,800 pixels, approx. 100 % image field, glass cover of extremely hard, scratch-resistant Gorilla® glass, colour space: sRGB, for Live-View and review mode, displays
-
Picture Series
Approx. 4.5 pictures/s
-
Sensor
B/W CMOS chip, active area approx. 24x36 mm, without color and low-pass fi lter
-
Scope of Delivery
Charger 100-240V with 2 mains cables (Euro, USA, varies in some export markets) and 1 car charging cable, lithium ion battery, carrying strap, body bayonet cover, cover for accessory shoe
-
Exposure Metering Methods
Light reflected by the blades of the 1 shutter curtain onto measuring cell.
-
Long-base rangefinder
Split or superimposed image range finder shown as a bright field in the centre of the viewfinder image
-
Effective Metering Base
50.6mm (mechanical measurement basis 69.31mm x viewfinder magnification 0.73x)
