LEICA M MONOCHROM "SIGNATURE" BY ANDY SUMMERS + SUMMICRON-M 35MM F/2
Write some content that will appear in a modal
Write some content that will appear in a modal
-
Format
Compact digital view - and rangefinder system still and video camera
-
Lens mount:
Leica M bayonet with additional sensor for 6-bit coding
-
Lens System
Leica M lenses from 16 to 135 mm.
-
Material
All-metal case made of die-cast magnesium; synthetic leather covering. Brass top panel and base, black chrome plated finish.
-
Image Sensor
B/W CMOS chip, active area approx. 23.9 × 35.8 mm (corresponds to usable format of analog Leica M models) without color and low-pass filter.
-
Exposure Modes
Choice of automatic shutter speed control with manual aperture preselection – aperture priority A, or manual shutter speed and aperture setting.
-
Exposure Metering
Through-the-lens (TTL) metering, with variable aperture, center-weighted TTL metering for flash exposure with system-compliant SCA-3000/2 standard flash units.
-
Metering Principle
By metering the light reflected by light blades of the 1st shutter curtain onto a measuring cell: strong center-weighted; for metering on the sensor: spot, center-weighted, multi-field metering.
-
Metering Range
(to ISO 320, room temperature and normal relative humidity:) EV 0 (with aperture 1.0) to EV 20 (with aperture 32). Flashing of the left-hand triangular LED in the viewfinder signals that the exposure meter reading is below the working range.
-
Shutter Speed
For aperture priority: (A)continuous from 60 s to 1/4000 s. For manual adjustment: 8 s to 1/4000 s in half steps. B:for time exposures up to max. 60 s (in conjunction with self-timer T function, i.e. 1st release = shutter opens, 2nd release = shutter clo
-
Burst Rate
3fps
-
Self-Timer
2s / 12s
-
Viewfinder
Large, bright, combined bright-line viewfinder with automatic parallax compensation.
-
Resolutions
DNG™: 5976 × 3992 (24 megapixels), JPEG: 5952 × 3968 (24 megapixels), 4256 × 2832 (12 megapixels), 2976× 17984 (6 megapixels), 1600 × 1072 (1.7 megapixels). For video recordings: 720 P, 1080 P.
-
Data Formats
DNG™ (raw data), either uncompressed or compressed (lossless), JPEG.
-
File Sizes
DNG™: compressed 20-30 MB, uncompressed 34.5 MB, JPEG: depending on resolution and picture content
-
Storage Media
SD cards up to 2 GB, SDHC cards up to 32 GB, SDXC cards.
-
Video Recording Format
24 fps, 25 fps
-
Buffer Memory
2 GB/30 pictures in series.
-
Magnification
0.68 x (for all lenses).
-
GPS
Optional (only with multifunction hand grip attached, not available everywhere due to country-specific legislation, i.e. enforced automatic shutdown in those countries), data written to EXIF header in picture files.
-
Dimensions
Approx. 138,6× 42 × 80 mm (5.45 × 1.65 × 3.15 in).
-
Weight
4,360 g / 5,140 g
-
Camera Type
Compact digital view and rangefinder system camera with a dedicated black-and-white image sensor.
-
Sensitivity Range
ISO 320 to ISO 25000, adjustable in 1/3 ISO increments, choice of automatic control or manual setting
-
Shutter
Metal blade focal plane shutter with vertical movement
-
Release Button
For single pictures: two-stage, 1. Activation of exposure metering and exposure lock (in aperture priority mode), 2. Shutter release; standard thread for cable release integrated.
-
Sound Recording
Mono, stereo using microphone adapter, choice of automatic or manual modulation during recording or fixed “Concert” setting.
-
Image Field Indication
By activating two bright-line frames each: for 35 and 135 mm, or for 28 and 90 mm, or for 50 and 75 mm. Automatic switching when lens is attached. Frame color (red/white) selectable in menu.
-
Display in the Viewfinder
Four-digit digital display with dots above and below, displays.
-
On Back

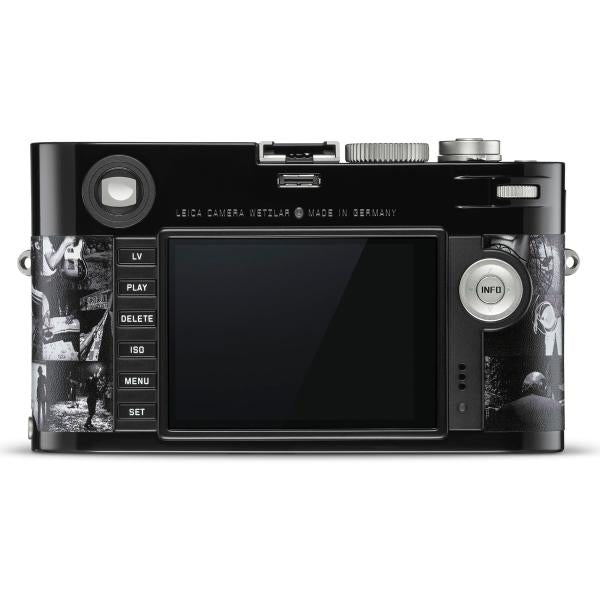

3" TFT LCD monitor with 16 million colors and 921,600 pixels, approx. 100 % image field, max. 170° viewing angle, glass cover of extremely hard, scratch-resistant sapphire crystal for LiveView and review mode.
-
GPS
Optional (only with multifunction hand grip attached, not available everywhere due to country-specific legislation, i.e. enforced automatic shutdown in those countries), data written to EXIF header in picture files.
-
Scope of Delivery

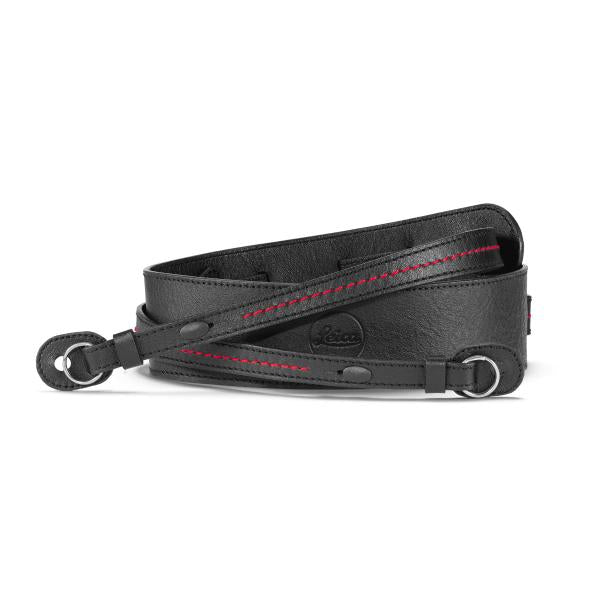

M MONOCHROM (Typ246), Summicron-M f2/35 ASPH., OBERWERTH leather system bag, black, Special “Signature” camera strap, Battery, Charger & Cables, Instructions, Special set packaging.
