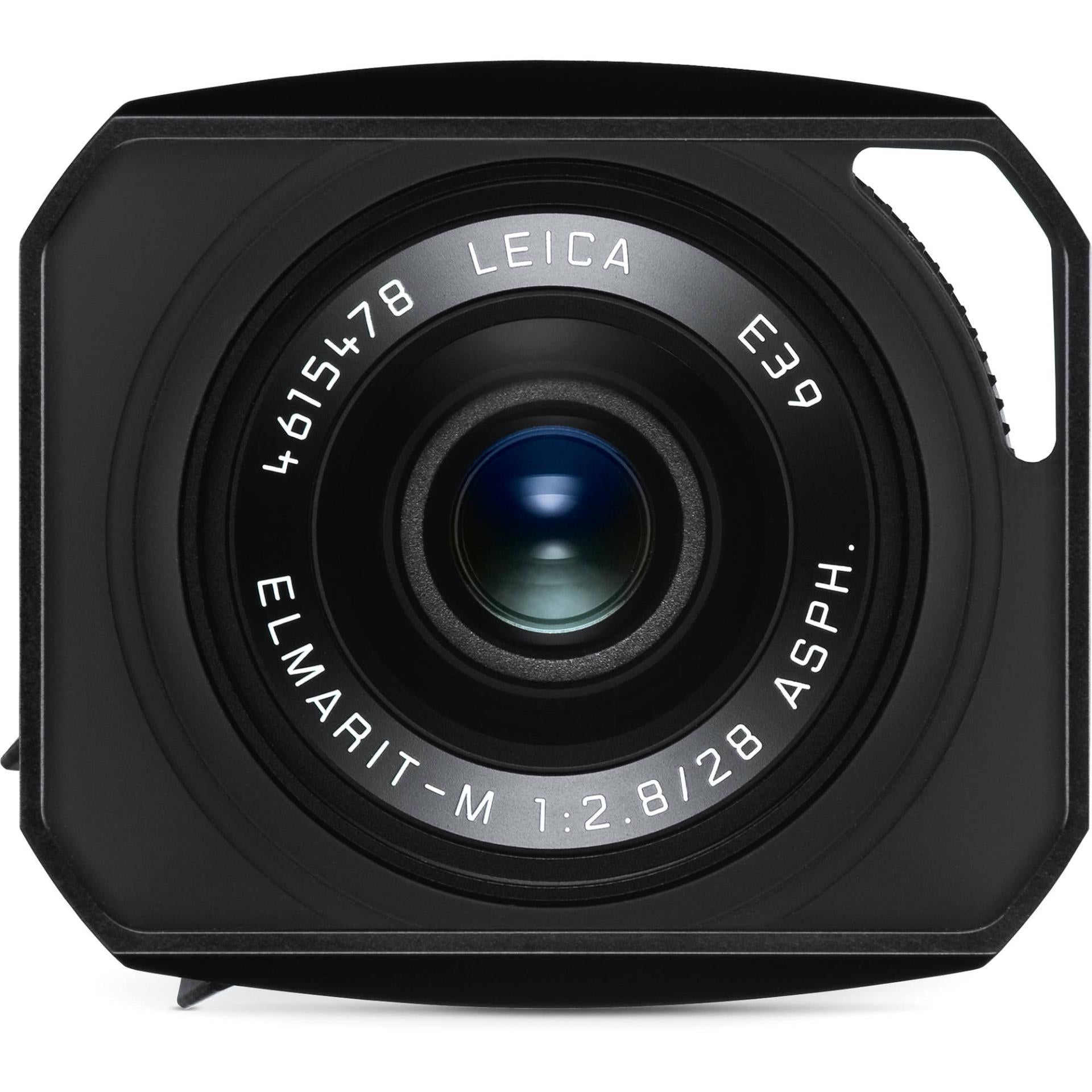

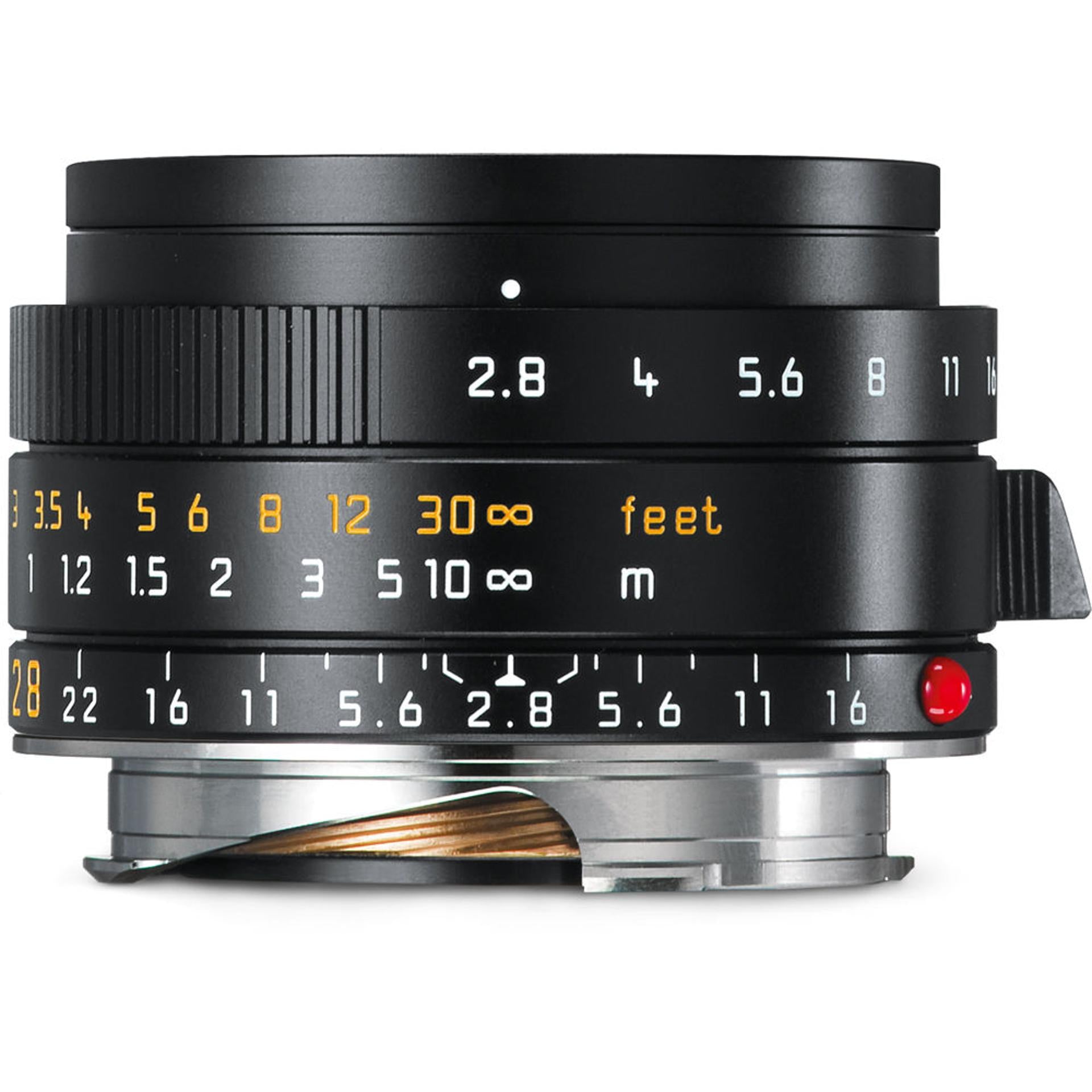

Leica Elmarit-M 28mm f/2.8 ASPH
%0A%0A%0Afor%2035%20mm%20(24%20x%2036%20mm)%0A75%C2%B0,%2065%C2%B0%20,%2046%C2%B0%0A%0A%0Afor%20M8%20digital%20(18%20x%2027%20mm)%0A60%C2%B0,%2051%C2%B0%20,%2036%C2%B0%0A%0A%0AOptical%20design%0A%0A%0A%0ANumber%20of%20lenses/groups%0A8%20/%206%0A%0A%0AFocal%20leng...){kind=link}
Write some content that will appear in a modal
Write some content that will appear in a modal
| Angle of view (diagonal, horizontal, vertical) | |
| for 35 mm (24 x 36 mm) | 75°, 65° , 46° |
| for M8 digital (18 x 27 mm) | 60°, 51° , 36° |
| Optical design | |
| Number of lenses/groups | 8 / 6 |
| Focal length | 28 mm |
| Position of entrance pupil | 11.8 mm |
| Focusing range | 0.7 m to infinity |
| Distance setting | |
| Scales | Combined meter/feet graduation |
| Smallest object field | 533 x 800 mm |
| Largest reproduction ratio | 1:22 |
| Aperture | |
| Setting/Function | With click-stops, half values available, manual diaphragm |
| Lowest value | 22 |
| Bayonet | Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models |
| Filter mount | Internal thread for screw-on filters size E39 |
| Lens hood | Screw type (supplied) |
| Dimension and weight: | |
| Length | 30.7 / 49.4 mm (without / with lens hood) |
| Largest diameter | approx. 52 mm |
| Weight | approx. 175 g |
Title
Title
Share some content to your customers about your products.
Title
Share some content to your customers about your products.
Choose options
Leica Elmarit-M 28mm f/2.8 ASPH
Sale price80.960.000₫
